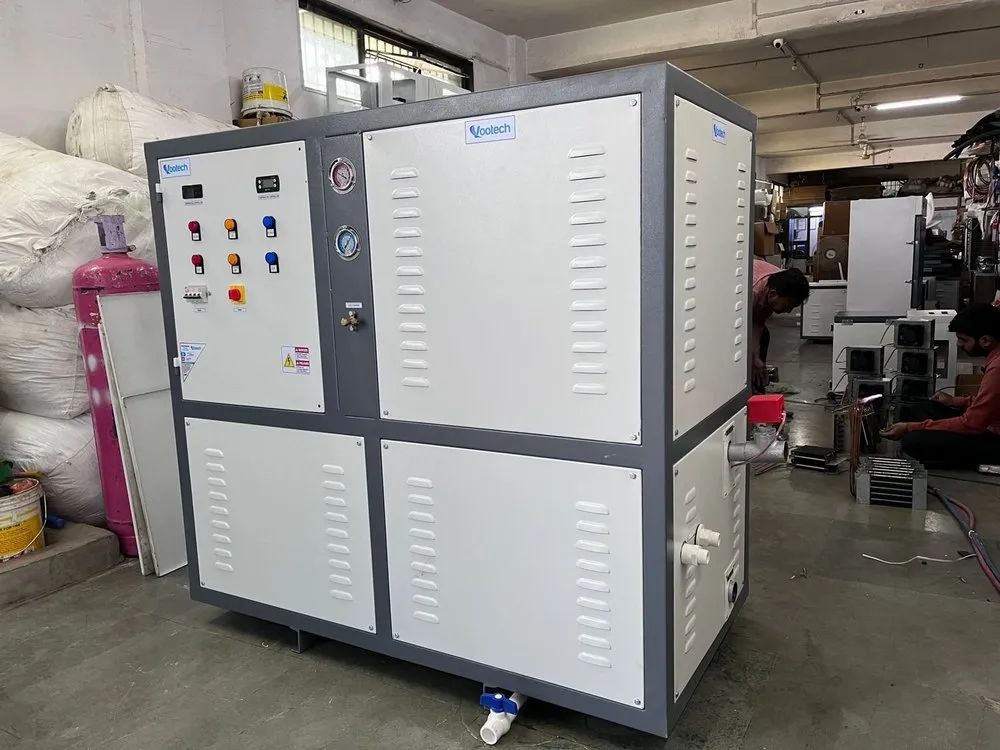

50 TR Chiller

50 TR Chiller Specification

Cooling Capacity: 100 TR ( 350-375 kW) at standard conditions
Compressor: High-efficiency screw compressor(s) semi-hermetic / hermetic type, robust for continuous industrial operations
Refrigerant: Options such as R-407C, R-134a, or R-410A (environmentally friendly, low Global Warming Potential)
Evaporator: Shell & tube / plate type heat exchanger for chilled water side designed for minimal pressure drop and effective heat transfer
Condenser: Water-cooled condenser, shell & tube or similar, with water circulation via cooling tower or closed loop system
Control System: PLC + digital / touch screen interface, with temperature display, alarms, safety interlocks (high/low pressure, flow switch, compressor overheat, phase failure etc.)
Capacity Control: Multi-step capacity modulation or unloading to match load (e.g. 100-75-50-25% stages) for better efficiency at part loads
Power Supply: 3-Phase, 380-415 V, 50 Hz (customizable if needed)
Operating / Ambient Conditions: Chilled water inlet/outlet typically 12 C7 C or similar, ambient/water-condensing side as per site conditions

High cooling capacity suitable for large industrial processes (plastics, injection molding, chemical, food processing, pharmaceuticals)
Good energy efficiency, especially under partial load operations
Reliable performance due to screw compressor design fewer moving parts, lower maintenance
Compact footprint relative to capacity, robust construction for industrial settings
Multiple safety features for protection of equipment and smooth operation

Parameter	Specification
Cooling Capacity	100 TR ( 350-380 kW)
Chilled Water Flow Rate	60-70 m/hr (depending on T)
Power Input	70-80 kW (depending on load, T, and compressor efficiencies)
Refrigerant Charge	60-90 kg (depends on refrigerant type and design)
Compressor Type	Semi-hermetic Screw Compressor(s)
Material of Construction	Mild Steel / Stainless Steel wetted parts; corrosion-resistant finishing
Control Panel	PLC based, human-machine interface (touch screen), safety protections (pressure, flow, etc.)
Dimensions / Weight	Model dependent; for example, approx 2.83.2 m (length) 1.11.5 m (width) 1.52.2 m (height); weight may be 1,500-2,500+ kg
Noise Level	Ideally < 80-85 dB (at standard measurement point), but model dependent
Warranty	12 months (standard), options for extended warranty or service contracts

Brand: GLACILA
Location: West Bengal / India (or as per your factory)
Support: After-sales service, spare parts availability, technical support on installation & commissioning
Delivery Time: Typically 4-8 weeks (depending on model and customization)
Payment Terms: As per TradeIndia norms e.g. Cash in Advance / Letter of Credit / Stage Payments
